Electrical · MC Inspection

MC inspection — from Excel reconciliation to a live dashboard

Mechanical Completion for every equipment and cable, fully online, with subsystem RFCC aggregated automatically.

Dual-rate accounting: CompletionRate (action done) and CleanPassRate (quality passed) — site and supervisor each get the rate they care about.

Inspection flow

1
TagMaster master data
Import equipment/cable tags, establish unique codes
2
Raise MC request
TagNo + CheckSheetCategory cascade dropdown prevents mismatch
3
On-site inspection
InspectionDate marks action complete, CompletionRate +1
4
Record opinions
A/B class opinions auto-sync to the Punch module
5
Passed / Cleared
Status flips to Cleared once all Punch items close, CleanPassRate +1
6
RFCC aggregation
When every MC in a subsystem is Cleared, RFCC READY fires

CompletionRate tracks progress, CleanPassRate tracks quality — site teams and supervisors each get the right rate.

Picking a TagNo filters CheckSheetCategory to only valid options, killing mismatches at the source.

PunchCategory on an MC row is computed from the Punch table — hand-fill is disabled.

Update the same field on many rows at once (e.g. batch InspectionDate); every action lands in the activity log.

Preview Excel uploads — X new, Y updates, Z skipped — confirm before any write.

Filter MC by drawing number to match how the yard actually works.

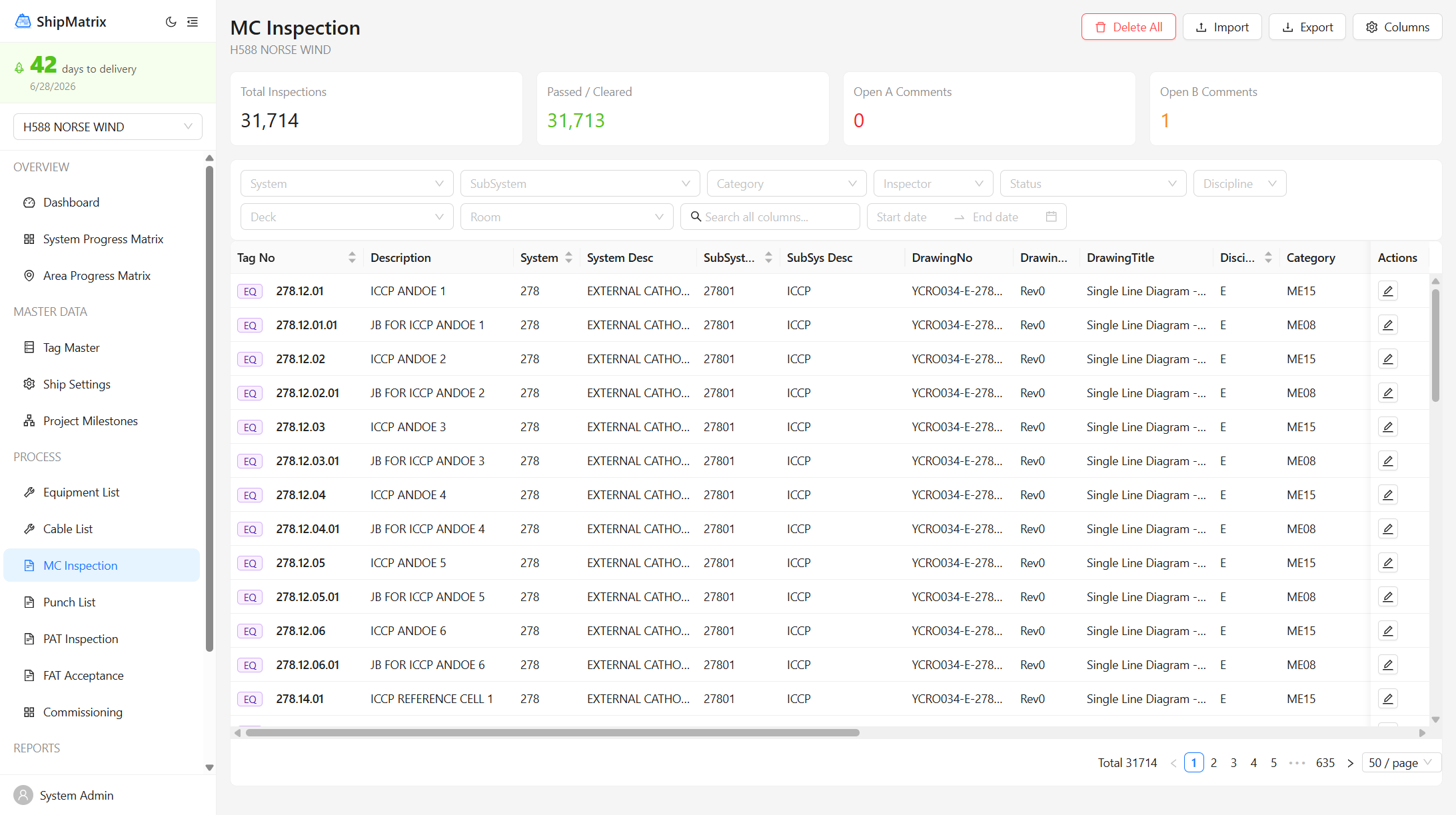

Real product screenshot · from H588 NORSE WIND project (v4.3)

Key MC fields, linked to Punch, equipment, and subsystem data.

Field	Description	Note
TagNo	Unique equipment/cable code	Required · dropdown
CheckSheetCategory	Inspection category (cascade)	Required · dropdown
InspectionDate	Actual inspection date	Drives CompletionRate
InspectionStatus	Passed / Cleared / Open	Inferred from Punch status
PunchCategory	Aggregated A / B class	Auto, hand-fill disabled
SubSystemNo	Owning subsystem	Drives RFCC aggregation
DrawingNo	Linked drawing number	Filter + jump to drawings
